| Overview | |
|---|---|
| Dimensions | 212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5 ") |
| UniFi Application Suite | Network, Protect, Access, Talk, Connect |
| Managed UniFi Devices | 50+ |
| Managed Cameras | (15) HD | (8) 2K | (5) 4K |
| Simultaneous Users Connected | 500+ |

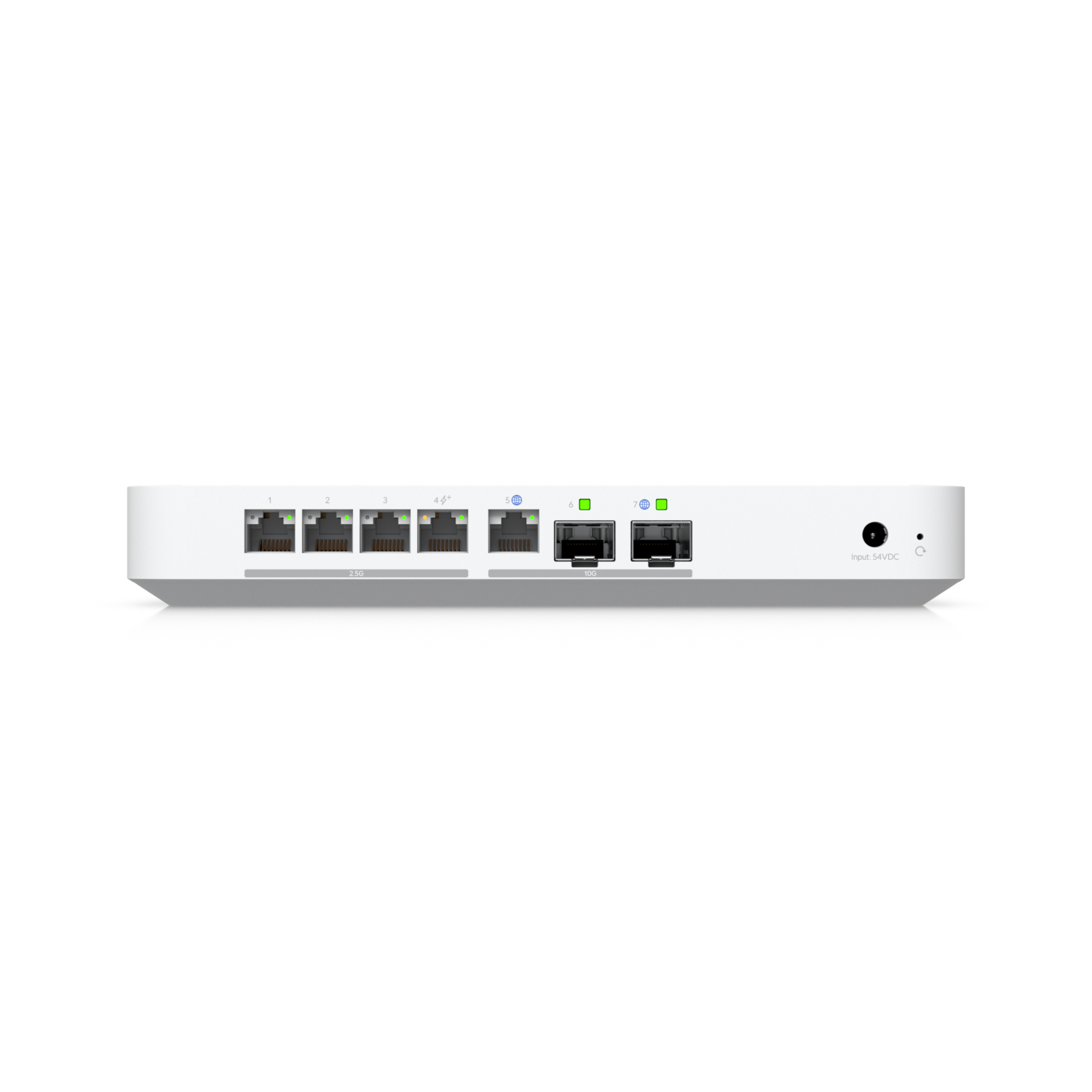

| Default WAN Ports | (1) 10G SFP+ | (1) 10 GbE RJ45 |
| LAN Ports | (1) 10G SFP+ | (4) 2.5 GbE RJ45 |
| IDS/IPS Throughput | 5 Gbps |
| Form Factor | Compact desktop |
| Security | |
|---|---|
| Stateful Firewall | Yes |
| Application-Aware Layer 7 Firewall | Yes |
| DPI & Traffic Identification | Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Yes |
| Content Filtering | Yes |
| Intrusion Prevention (IPS/IDS) | Yes |
| Ad Blocking | Yes |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | Yes |
| VPN & SD-WAN | |
|---|---|
| License-Free SD-WAN | Yes |
| Site-to-Site VPN | Site Magic, IPsec, OpenVPN |
| VPN Server | Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP |
| VPN Client | OpenVPN, WireGuard |
| Networking | |
|---|---|
| Multi-WAN Load Balancing | Yes |
| Dynamic Routing | OSPF |
| Advanced QoS | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Yes |
| Integrated RADIUS Server | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Additional Internet Failover with UniFi LTE Backup | Yes |
| Internet Quality and Outage Reporting | Yes |
| MAC Address Table Size | 4,000 |
| Hardware | |
|---|---|
| NVR Storage | Selectable NVMe SSD up to 2 TB |
| PoE Budget | 30W |
| Voltage Range PoE Mode | 50-57V |
| Max. Power Consumption | 29.4W (Excluding PoE output) |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A (adapter included) |
| Supported Voltage Range | 100-240V AC |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 3 GB |
| Weight | Without SSD: 675 g (1.5 lb) With SSD: 734 g (1.6 lb) |
| Enclosure Material | Polycarbonate |

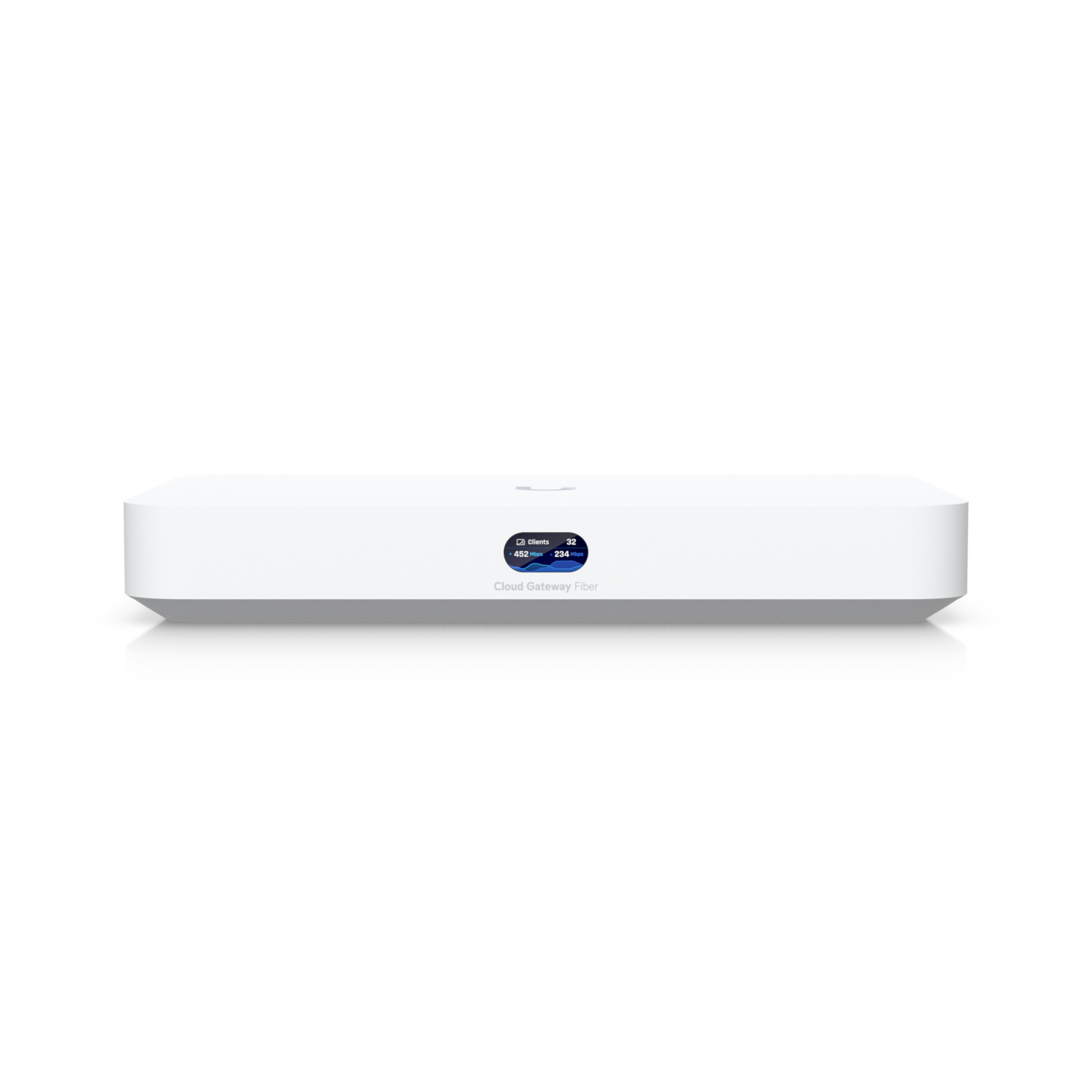

| LCM Display | 0.96" status display |
| Management | Ethernet, Bluetooth |
| LEDs | Ethernet, SFP+ |
| Button | (1) Factory-reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
